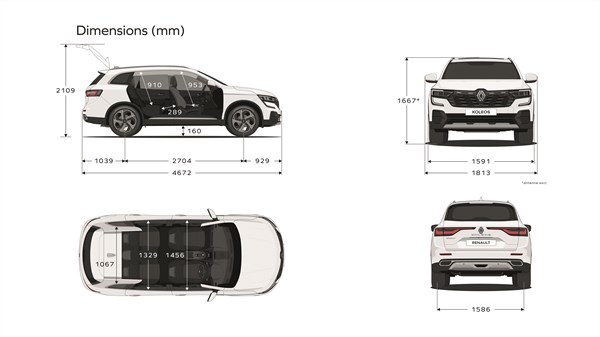

A | Overall length | 4673 |
B | Wheelbase | 2705 |
C | Front overhang | 930 |
D | Rear overhang | 1038 |
K | Ground clearance (unladen) | 210 |
L | Rear knee room | 289 |

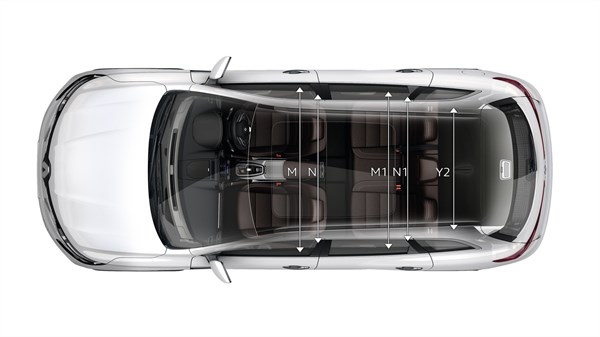

M/M1 | Elbow width (front/rear) | 1,483/1,456 |
N/N1 | Shoulder width (front/rear) | 1,449/1,419 |
P | Distance between hip joint & ceiling in front seats | 953 |
Q | Distance between hip joint & ceiling in rear seats | 911 |
Y2 | Interior width between wheel arches | 1,066 |
Z1 | Maxi loading length (rear seats folded down) | 1889 |
Z2 | Loading length behind the rear seats | 973 |
Z3 | Height under parcel shelf | 365 |
E | Front track | 1,591 |
G/G1 | Overall width without / with door mirrors | 1,843 / 2,063 |
H/H1 | Unladen height / with opened tailgate | 1,678 / 2,118 |
F | Rear track | 1,586 |
Y | Upper boot width | 1,091 |
Y1 | Lower boot width | 1,034 |
VDA total boot capacity* | 550 |
Rear seats folded, up to roof | 1,690 |
